How to Format Fixed Voice Subscription Data

Fixed Voice Subscription Data (FVS) refers to the count of subscriptions to the fixed service provider’s voice service offerings by census tract.

The content and formats are identical to those in the FCC Form 477 filing interface.

FVS Data can be submitted using one of two methods:

  • By entering the FVS Data row-by-row at the tract level within the “Data Entry” tab, which is located at the top of the FVS page, next to the “Upload Files” tab

              OR

  • By uploading a valid file in Comma Separated Value (CSV) format that contains the following 4 required fields:



Field

Header

Data Type {number of characters}

Example

Description / Notes

Tract Code

tract

Text {11}

11001006202

11-digit 2020 census tract code – must be 11 digits!  Filers should also ensure that the tract code is stored as text rather than as a numeric value (otherwise, any leading zeros in the tract code will be dropped).

Service Type

service_type

Integer {1}

0

A code indicating the type of service counted in each record:  0=VGE lines (for local exchange services) or 1=VoIP subscriptions (for interconnected VoIP services).

- Value must be one of the following codes:

0 Voice-grade Equivalent Line

1 Interconnected Voice over IP (VoIP)

Total VGE lines or VoIP Subscriptions

total_lines_or_subscriptions

Integer

100

The number of voice-grade equivalent lines and voice-grade equivalent wireless channels in service (if Service Type = 0) OR the number of VoIP subscriptions (if Service Type = 1) provided in the census tract.

Consumer VGE Lines or VoIP Subscriptions

consumer_lines_or_subscriptions

Integer

57

The number of voice-grade equivalent lines and voice-grade equivalent wireless channels in service (if Service Type=0), OR the number of VoIP subscriptions (if Service Type=1) provided in consumer-grade service plans in the census tract.  A consumer service plan (or Mass market / consumer service plan) is a service plan designed for, marketed to, or purchased by primarily residential end users.

Note: For more information on how to assign connections to census tracts and how to count VGE lines and VoIP subscriptions, see Fixed Voice Subscribership Terms.



f we were to place the values in the “Example” column from the table above into a comma separated format for upload, they would make a single data row (record) like this:

1101006202,0,100,57

The data row above can be translated as saying that at the time of the “as of” date for the filing, in tract 1101006202, the filer had a total of 100 VGE lines in service, of which, 57 were provided in consumer-grade service plans.

Rows must be unique by tract and service type.

Do not include a row for which the total number of total VGE lines or VoIP subscriptions is ZERO, that is, no actual voice subscribers in a particular combination of tract and service type, even if there is deployed infrastructure to support them.

An Example

Say that your company has both consumer and business voice customers and that your residential and single-line business customers are served via traditional Time Division Multiplexing (TDM) format/circuit-switched local exchange telephone service lines, while you’ve recently switched your business customers over to a VoIP solution.

So, in this example, the circuit-switched lines are easy to count: one per subscription. To simplify things, let’s assume that your pricing structure for business VoIP is a fixed cost plus a marginal cost for each additional user that can be placing calls to the public switched telephone network at the same time. In this case, counting VoIP subscriptions for the BDC can be accomplished by just counting users.

Now, let’s say that after geocoding your service addresses, you find that your company has connections in service in 3 tracts: 51179010404, 51179010405, and 51179010406. Summing connections by tract and service type, you find the following:





Tract Code



Service Type

VGE Lines / VoIP Subscriptions

Consumer VGE Lines / VoIP Subscriptions

51179010404

VoIP

201

0

51179010404

VGE lines

322

322

51179010405

VoIP

32

0

51179010405

VGE lines

2

2

51179010406

VoIP

5

0

51179010406

VGE lines

45

45



If you really had service in 3 tracts, it might be reasonable to input these data interactively. Nonetheless, uploading a file will work just as well. To prepare the data for upload, convert the words describing the service type to a 0 or 1 indicator where 0 represents VGE lines and 1 represents VoIP subscriptions:





Tract Code



Service Type

VGE Lines / VoIP Subscriptions

Consumer VGE Lines / VoIP Subscriptions

51179010404

1

201

0

51179010404

0

322

322

51179010405

1

32

0

51179010405

0

2

2

51179010406

1

5

0

51179010406

0

45

45

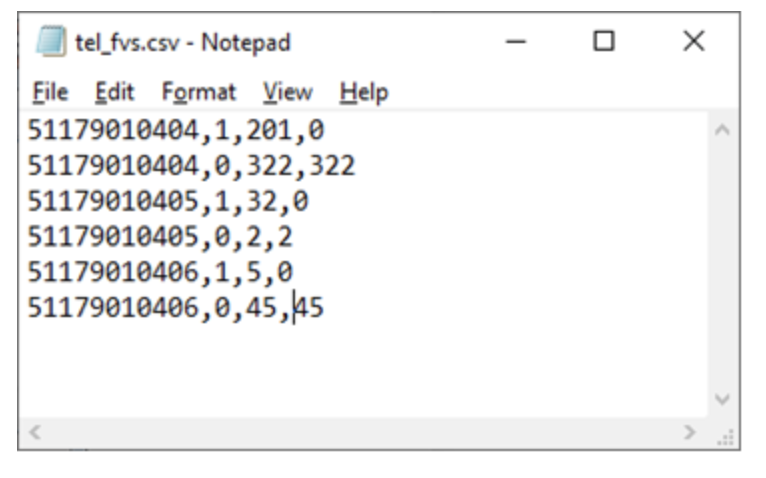

Then save the data as a comma separated values (CSV) file. When opened in a text editor like NotePad, the file should look like this:
